Water Meter

Water Meter
Water Meter
Product Code : WM - 23
Product Description

WATER METER

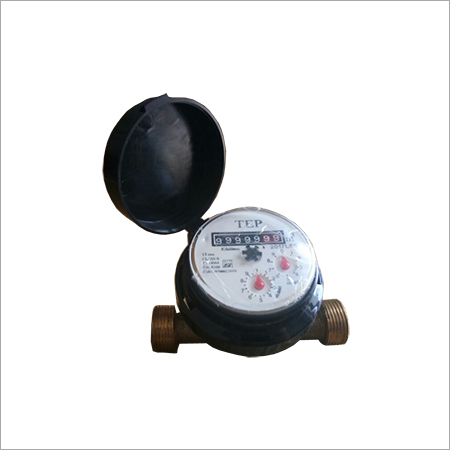

DOMESTIC WATER METERS:-

  • Single Jet Class A & B, 15mm -20mm (½ ” -¾” )
  • An inferential, single jet, super dry straight reading type, hermetically sealed water meter with magnetic drive.

STANDARDS:-

  • Complies with class A & B of IS-779/94 also ISO & EEC.

CONSTRUCTION:-

  • Highly sensitive to low flow rates and very accurate over its entire flow range.
  • Having low loss of head which allows water to reach upper floors.
  • Sealed against tampering.
  • Totaliser leakproof, totally dry.
  • Long maintenance free life.
  • Self lubricating gears and bearings.


OPTIONS:-

  • “TEP” Water meters with EEC Mark


DOMESTIC WATER METERS:-

  • Multi  Jet Class B, 15mm -40mm (½ ”- 1 ½ ” )
  • An inferential, Multijet, dry type water meter with magnetic drive and vacuum sealed register.


STANDARDS:-

  • Conforms to  ISO -4064 , Class B.


CONSTRUCTION:-

  • Highly sensitive to low flow rates and very accurate over its entire flow range.
  • Low head loss.
  • Vacuum Sealed, leak proof and try Totaliser.
  • Self – lubricating gears.
  • Long maintenance free working life.


OPTIONS:-

  • Remote reading facility/pulse output available on request.
  • Hot Version available up to 90ºc


WOLTMANN WATER METERS:-


  • 50mm -500mm (2 ”- 20” )
  • A removable mechanism type Woltmann water meter with magnetic drive and vacuum sealed register.


STANDARDS:-

  • Conforms to ISO 4064 , Class-B


APPLICATION:-

  • Water Distribution Network industrial / Commercial water supply


FEATURES:-

  • Leak proof and sealed totaliser.
  • Magnetic drive.
  • Repairable without interrupting water supply.
  • Removable mechanism ensures easy maintenance.
  • Totaliser protected by metallic cover.
  • Reliable sensitive metrology and low pressure loss.

OPTIONS:-

  • Hot water meters (<90ºc)
  • Pulse output water meters.
  • Water meter with EEC Mark
  • Water meters suitable for ETP/Dirty water.
  • Dirt Box (50 mm to 500 mm)
