Flow Meter

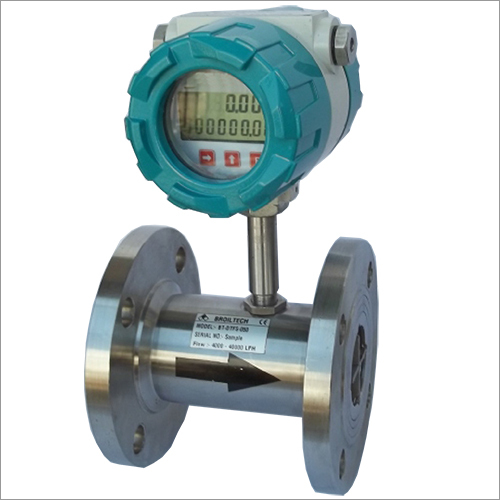

Turbine Flow meter

Description

Type

A

Flow sensor pulse output three-wire system, +12V power supply

B

Local display , powered by 3.6V battery

C

Local display with 4-20mA ou pulse output,powered by24v.

D

Flow transmitter 4-20mA output,powered by 24V:

Nominal drift diameter

4

Normal flow range m3/hr

0.04-0.25

Extended flow range m3/hr

0.04-0.4

6

0.1-0.6

0.06-0.6

10

0.2-1.2

0.15-1.5

15

0.6-6

0.4-8

20

0.8-8

0.45-9

25

1-10

0.5-10

32

1.5-15

0.75-15

40

2-20

1-20

50

4-40

2-40

65

7-70

3.5-70

80

10-100

5-100

100

20-200

10-200

125

25-250

12.5-250

150

30-300

15-300

200

80-800

40-800

Explosion protection

Not marked, without explosion protection

B

Explosion protection type

Precision class

A

Precision : Class 0.5

B

Precision : Class 1.0

NOTE

• Sensors with pipe diameter of DN4-DN40 are of thread connections with maximum operating pressure of 6.3 Mpa.

• Sensors with pipe diameter of DN50-DN200 are of flange connections with maximum operating pressure of 2.5 Mpa.

• Sensors with pipe diameter of DN4-DN10 are provided with front and rear straight pipe sections and filters.

• Please specify whcn placing an order if flange connections are required for pipe diameter of DN15-DN40

• Please specify when placing an order for high pressure type and special requirements.
